Setting Up a Headless VNC Server for Remote Desktop Access

While SSH is a staple tool and almost universally understood among Linux users, setting up VNC for remote desktop access - especially headlessly or with virtual framebuffers - remains mysterious to many, and for good reasons:

• Requires understanding of X11 and graphical sessions (DISPLAY variables, X servers, etc.)
• Needs both a VNC server and a desktop environment/window manager
• Involves properly launching graphical sessions

However, for many professionals, researchers, and IT administrators, secure remote desktop access is not just a convenience - it's an inelastic requirement. Unlike other features you can work around or delay, robust GUI access to a remote host is sometimes the only way to get mission-critical work done. For example:

• Work-from-home mean you need to access graphical applications (like IDEs, simulators, and visualization tools) installed on remote lab or office machines.
• Remote servers without physical monitors demand a headless-only setup - you can't just "plug in a monitor and keyboard" to start a desktop session.
• Modern GUI applications sometimes can't run effectively via X11 forwarding (like over slow networks) and absolutely require a persistent desktop session.

In these scenarios, there is no substitute - the need is inelastic. You must have a reliable, secure way to run and manage desktops remotely. Frustratingly, most available documentation is scattered, outdated, or omits crucial details.

That's why this guide exists: to provide you with a direct, practical roadmap for setting up a robust remote desktop workflow, no matter where you work.

The Three Components of Headless VNC

Three key components work together to present a remote desktop via VNC:

Xvfb (X Virtual Framebuffer)

Xvfb is a "headless" X server that implements the X11 protocol and acts like a display server, but renders everything to memory instead of a physical monitor.

x11vnc

This utility acts as a bridge, allowing VNC clients to view and interact with an existing X server session. It:

• Connects to the X server's framebuffer (in this case, Xvfb's in-memory screen)
• Reads pixels from the X server, and writes mouse/keyboard events
• Presents those images to a VNC client over the network, and listens for events

GUI Applications

These render to Xvfb's in-memory screen instead of a physical monitor via the DISPLAY environment variable.

Step-by-Step Setup Guide

Prerequisites (Remote Host)

First, install the necessary packages on the remote host:

• xvfb
• x11vnc
• xterm, icewm (for demonstration purposes in this tutorial)

We would have to run xvfb, x11vnc, and xterm concurrently. For this purpose, I recommend using tmux (or any other comparable tool) to manage multiple terminal windows and persistent sessions.

Start the Virtual Display (Remote Host)

In your first terminal window on the remote host, start Xvfb:

Xvfb :1 -screen 0 800x600x16

This creates a virtual X11 display number :1 (using TCP port 6001) with resolution 800x600 and 16-bit color depth.

Xvfb has properly started only if the above command neither logs output nor exits after being invoked. If it logs messages or exits immediately, there's a problem to solve before moving on. Common issues include:

• Port 6001 already in use (try a different display number like :2)
• Permission issues with /tmp/.X11-unix directory. The /tmp/.X11-unix directory must be readable and writable. In some environments like WSL, this directory might be read-only, which will prevent Xvfb from starting properly.

Launch the VNC Server (Remote Host)

In a second terminal window on the remote host, start x11vnc:

x11vnc -display :1 -rfbport 5901 -localhost -forever

This command:

• Connects to the virtual X server's framebuffer at display :1
• Listens for VNC connections on port 5901
• Restricts connections to localhost only (for security, VNC is not encrypted)
  • Never expose VNC directly to the public Internet!
• With -forever, x11vnc won't exit after the last client disconnects

After running the command:

• It may report authentication or password-related errors (which is acceptable).
• But it should NOT exit after running for a while. If it exits after running for a while, there's a problem to solve before moving on.

Secure Access with SSH Tunneling (Local Machine)

VNC is not encrypted, so we'll use SSH tunneling on your local machine for security.

You can either use basic SSH port forwarding (which may be confusing), or set up the pull_remote_port.sh wrapper on your local machine to pull the remote host's port 5901 to localhost:5901. After cloning its GitHub repository and completing its prerequisites, run:

bash pull_remote_port.sh [-p <ssh_port>] -u <remote_user> -h <remote_host> -r 5901 -l 5901

This makes the remote host's VNC port available on your local machine via a secure SSH tunnel.

Test with a Simple Application (Remote Host)

In a third terminal window on the remote host, launch a test application:

# The `DISPLAY=:1` environment variable must be set
# For all GUI apps you wish to appear in the VNC session
export DISPLAY=:1
xterm

Now connect to your VNC server on your local machine using a VNC client (like TigerVNC, RealVNC, or Remmina) pointing to localhost:5901. You should see the xterm window.

Using Desktop Environments (Remote Host)

For a full desktop experience rather than just single applications, you can install a desktop environment.

Lightweight Options

• Openbox
• Fluxbox
• IceWM
• WindowMaker

Full Desktop Environments

• GNOME
• KDE Plasma
• MATE
• Cinnamon
• LXDE
• LXQt

Example: Installing and Using IceWM (Remote Host)

In the third terminal window on the remote host (the one used to launch xterm), quit xterm and start an IceWM session:

export DISPLAY=:1
icewm-session

Now your VNC client on your local machine will show the complete IceWM desktop environment.

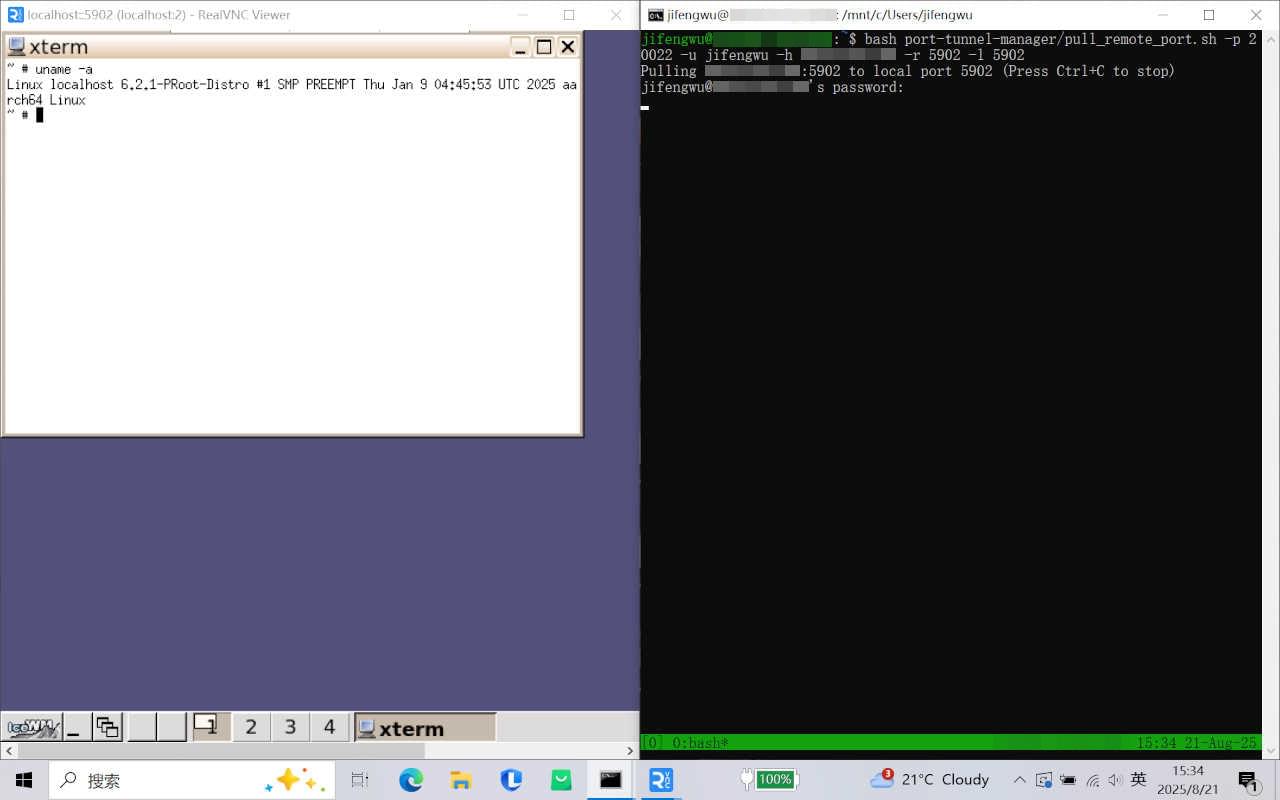

IceWM desktop environment in VNC client

Important Caveat: Single-Instance Applications

Many desktop applications are designed to run only one instance per user account:

• Browsers: Firefox, Chrome/Chromium
• Advanced editors: gedit, kate, geany (configurable), code/VSCode
• File managers: nautilus, pcmanfm (configurable), dolphin
• Document viewers: evince
• Many modern GTK/Qt apps that use D-Bus for activation

If your remote host has a physical desktop, and such an app is already running on your physical desktop, new instances will try to communicate with the existing instance via D-Bus, creating windows on your physical desktop instead of in your virtual framebuffer, even after export DISPLAY=:1.

Solution:

• Ensure applications aren't already running on your main desktop before launching them in your VNC session.
• Or use a different user account for VNC access.

Conclusion

Setting up a headless VNC server might seem complex at first, but by understanding the three components (Xvfb, x11vnc, and your GUI applications) and following this recipe, you can create a reliable remote desktop solution. Remember to always use SSH tunneling for security and be mindful of single-instance applications.

With this setup, you can enjoy full graphical desktop access to your remote Linux machines, opening up possibilities for remote administration, development, and troubleshooting.
